Clip-On Tent Lantern

A made-up invention, drawn start to finish by the same pipeline you’ll use: the drafted parts list, three sketch options, the numbered sketch, a 3D concept model and the figure sheet.

5 parts · Design Set · Concept drawings, not formal patent drawings

01 · SAMPLE-0001

What was typed, and the parts list we drafted

A small lantern that hangs from the loop at the top of a tent and throws soft, even light across the whole ceiling. A fold-flat clip on top snaps onto the loop with one hand, and a dial around the middle sets the brightness. The base twists off to reach the rechargeable battery sealed inside.

Parts · 5

01Light housingFrosted, rounded shell with a ring of LEDs inside. It spreads the light evenly so it doesn't glare.

02Fold-flat clipSpring-gate carabiner on a hinge at the top. It hooks onto the tent's ceiling loop and folds flat for packing.

03Battery packinsideRechargeable cell sealed inside the housing that powers the LEDs.

04Brightness dialRibbed ring around the middle of the housing. Turning it dims or brightens the light.

05Base capTwist-lock bottom cover with a charging port. It seals the battery in and twists off to swap it.

AI help on the brief · try it, nothing is saved

Before anything is drawn, two AI tools tighten the brief. Check my brief reads every part together and flags anything a drawer would have to guess, each with a ready fix. Refine rewrites one part: add sizes, a more precise shape, a check against the sketch, or your own instruction. You see it before and after, then keep it or discard it.

Reads every part and the assembly together and lists anything unclear.

02Fold-flat clip

What it is and how it attaches

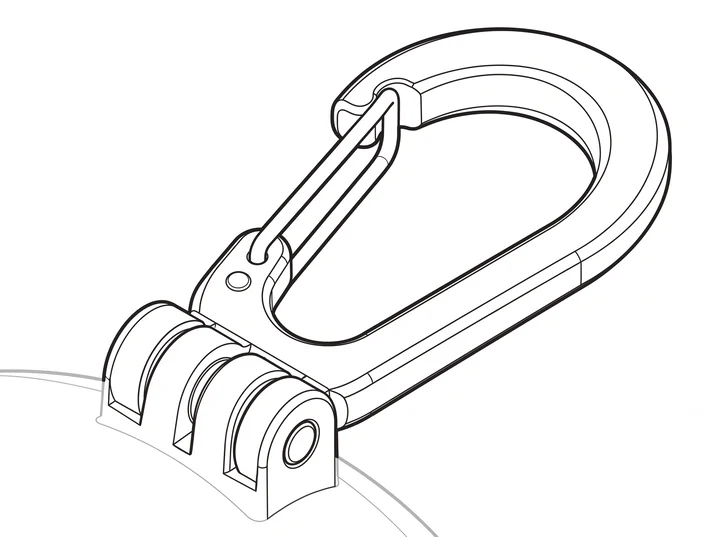

Spring-gate carabiner on a hinge at the top. It hooks onto the tent's ceiling loop and folds flat for packing.

In your own brief: 3 free refines per idea, then as many as you need once you have the 2D Sketch. Checking the brief doesn’t use a refine.

02 · SAMPLE-0001

Clip-On Tent Lantern

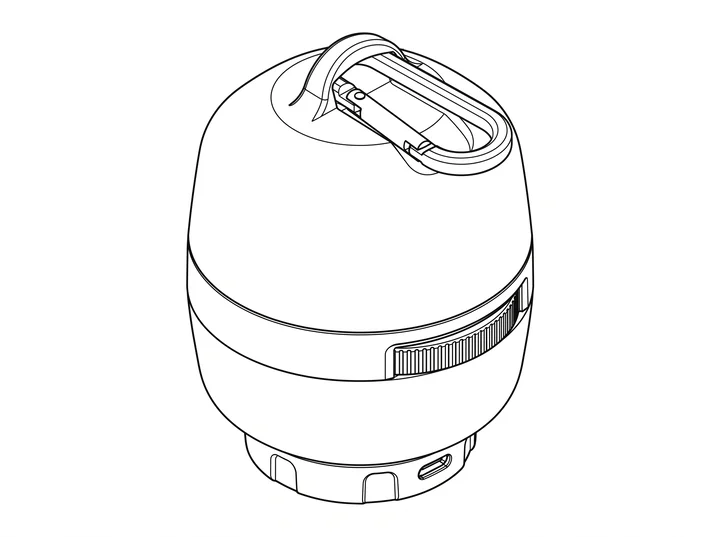

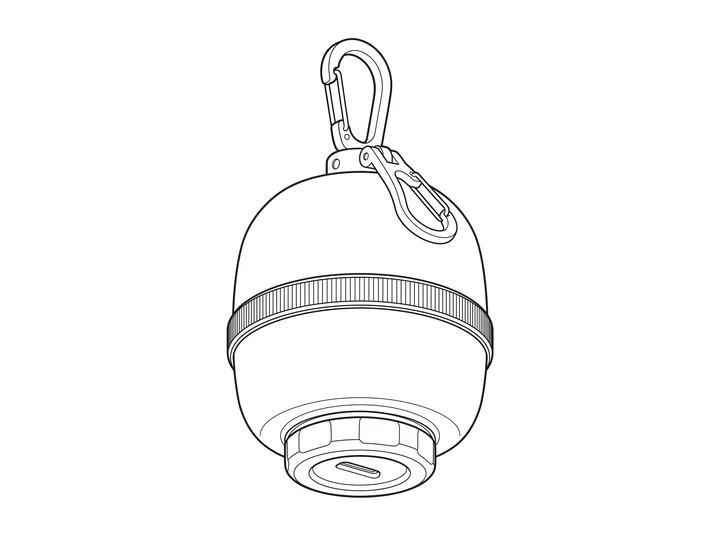

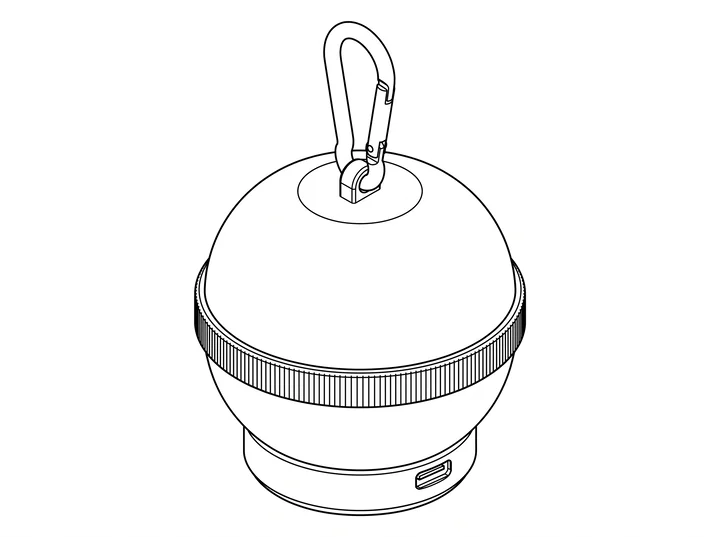

Three options to choose from

Each option is checked against the brief, part by part. Pick the closest one, or redo it up to twice with a note.

03 · SAMPLE-0001

Clip-On Tent Lantern

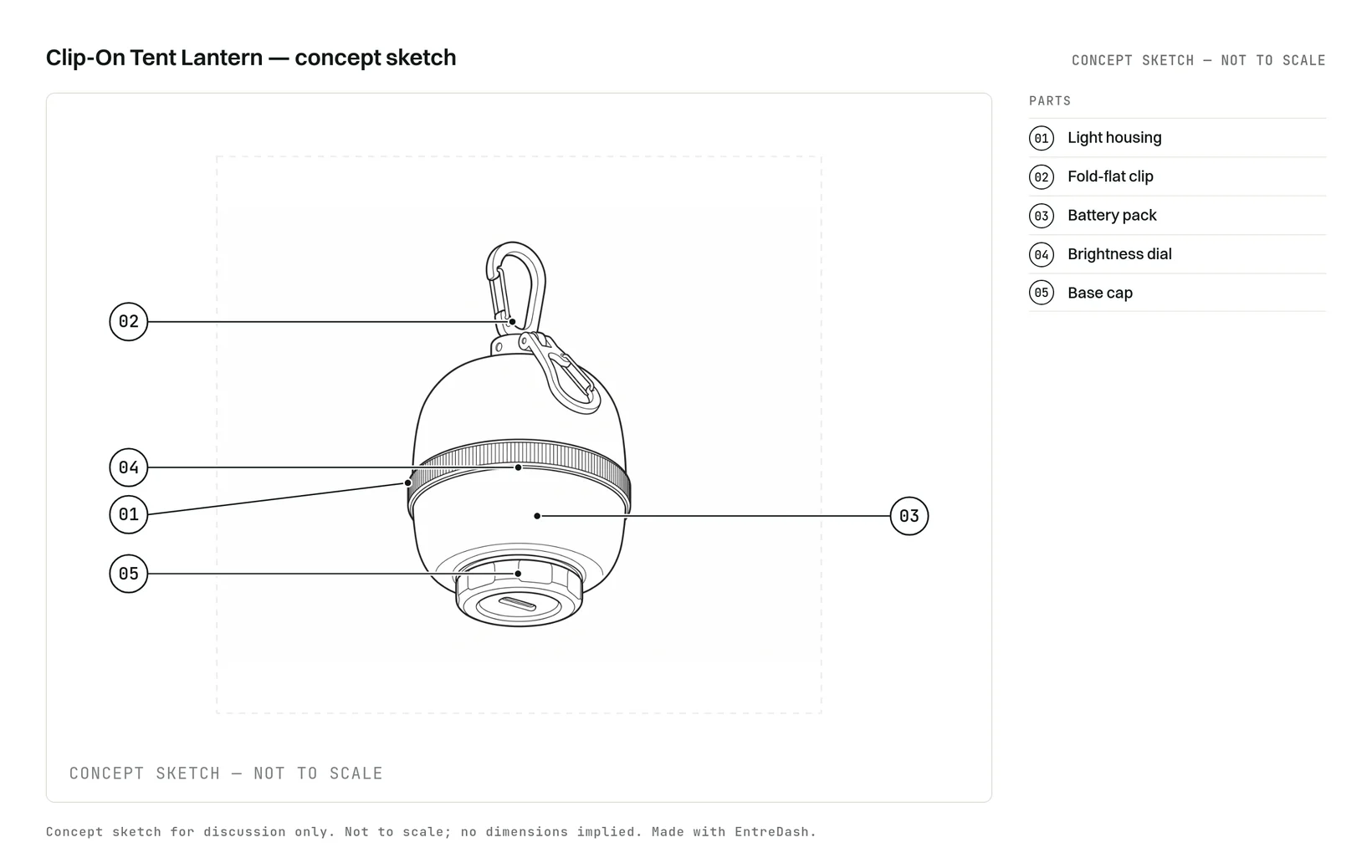

The numbered sketch

01Light housing
02Fold-flat clip
03Battery pack
04Brightness dial
05Base cap

04 · SAMPLE-0001

Clip-On Tent Lantern

The 3D concept model

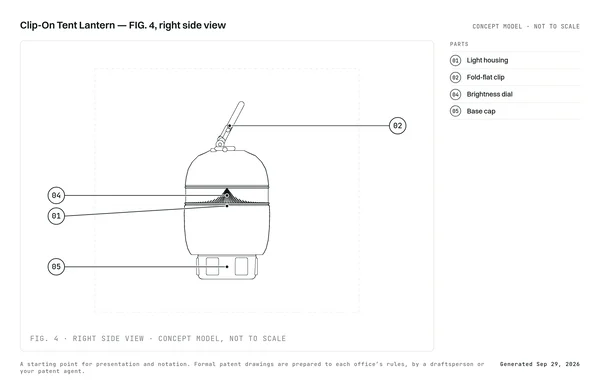

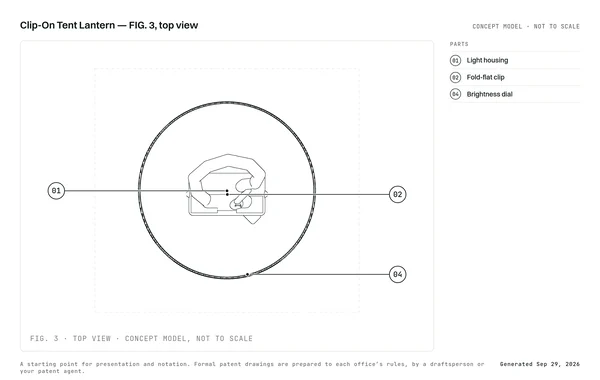

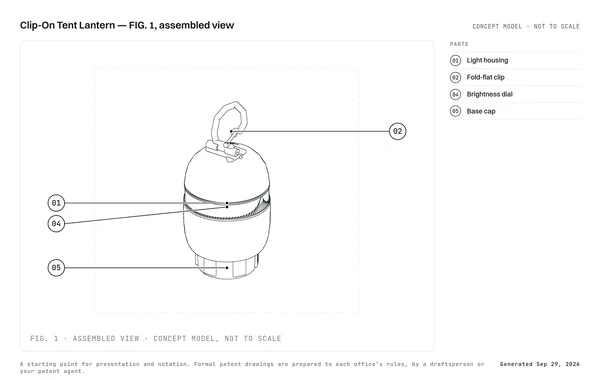

Each part is its own solid. Turn it, see inside to find the battery pack (03), or spread the parts apart. Download it as STL for printing, or OBJ and GLB for viewers and Blender.

05 · SAMPLE-0001

Clip-On Tent Lantern

The realistic render

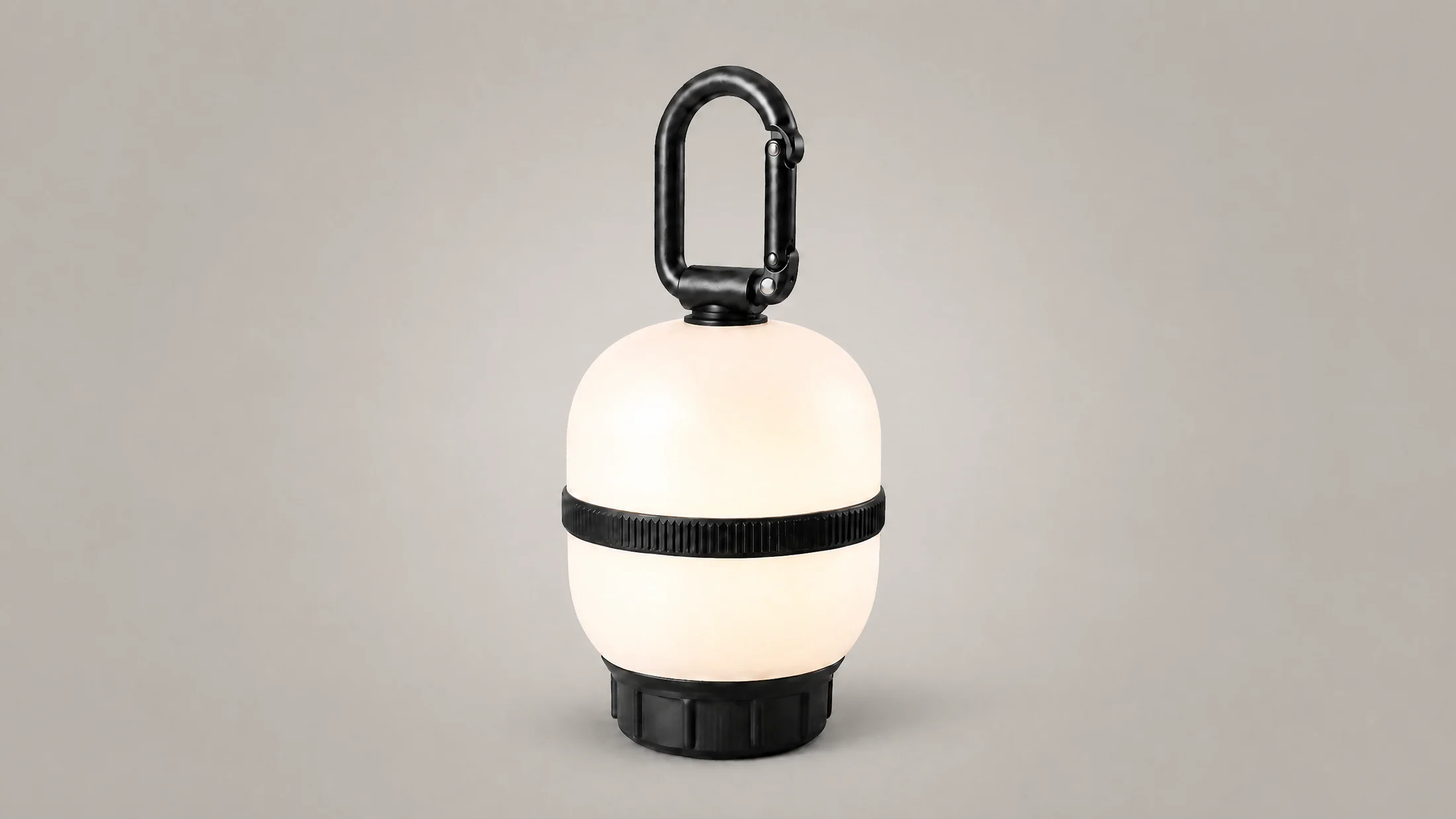

Made from the 3D model: the same shape and parts, with real materials and studio light. Use it in a pitch deck, a listing or a slide. It’s an artist’s impression, so treat the materials and colours as suggestions.
